Use:

Suitable for the drying of rice, wheat,maize or rapeseed if slightly refitted. Driers of different capacities are available for user's selection according to different scale of agricultural production adn different quantity of the corns to be dried.

Working principle:

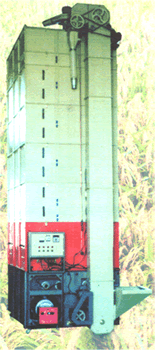

This drier is of the batch-style circular grain drier,the corns are put into the machine and continuously circled and then be discharged after drying.The drier is maily composed of the lower body, drying unit,stay unit,elevator,combustion engine and the fan.The corns are sent by the charger to the upper side of the drier through the elevator and evenly scattered by the upper screw feeder untill the whole drier is filled. The slowly falling corns will get through the gain tank in the drying unit to the upper screw feeder and then once again be sent to the upper side of the drier.The above process will be repeated. On one side of the lower body there is the combustion engine which produces hot air, and the hot air will be formed into a hot gas flow by the fan on the other side of the lower body.The hot air flow will get through the corns layer in the drying unit and take away the water in the corns.

Features:

1.Low temp., large quantity of air, clearance drying and no "waist-burst" of corns in dyring.
2.During drying, the corns keep circling and attriting with each other, thus the awn and trichome hair will be removed and then discharged from the machine, which will increase the cleaness of the corns.
3.There is enough time for corns to be mixed and stirred, which can improve the homogeneity of drying.
4.Thin corns layer in the drying unit with large drying area,which can result in good drying effect.
5.Drying temp. and operation time can be set ; automatic controll over the working process; automatic stop, easy operation.
6.Imported sprayng combustion engine:autoignition ,autoignition and accurate temp. control , complete combustion without polluting the corns.
7.Easy and complete cleaning, no mixing of seeds, especially suitable for the drying of crop seeds.
8.Easy operation and maintenance of the electrical control system which is specially designed for operators in the countryside.
9.Easy installation, small floor area occupied, no auxiliary devices.
